Mofo RC | Reaper 30 Amp ESCape 32 Brushless/Brushed Crawler ESC w/ Wi-Fi Link

The Reaper is a premium 30A ESC featuring ESCape 32 firmware, a 5 AMP adjustable BEC, and an included Wi-Fi module for tuning via your phone or computer. Available individually or through many of our motor combos.

Features:

• 2-6S Lipo Capable
• 30 Amp Continuous
• 45 Amp Burst
• 5 Amp Adjustable BEC (5.5v to 8.4v)
  • Set to 7.4v

• Conformal Coated (Water-resistance)

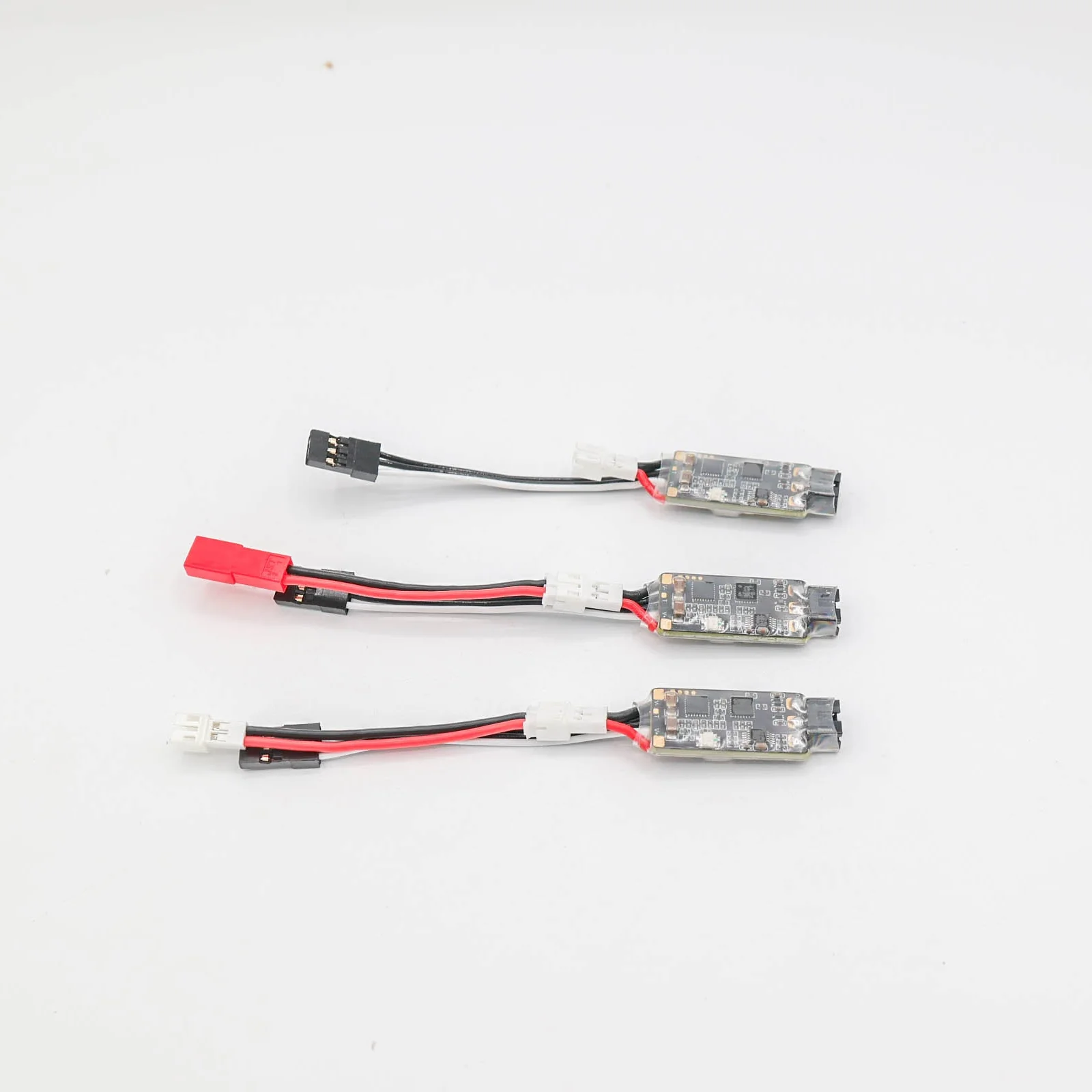

• Now includes multiple wiring setups for any build
  • PH2.0 Connector Hardwired - (Short 20mm wire length)
  • PH2.0 to JST Adapter- (50mm Wire Length)
  • PH2.0 to PH2.0 Extension- (50mm Wire Length)
  • XT30 Adapter Available Separately
• Black servo wire w/ white signal wire (75mm wire length)
• Dimensions: 28mm (L) x 15.5mm (W) x 6.5mm (H)

Includes:

• 1 x Reaper ESC

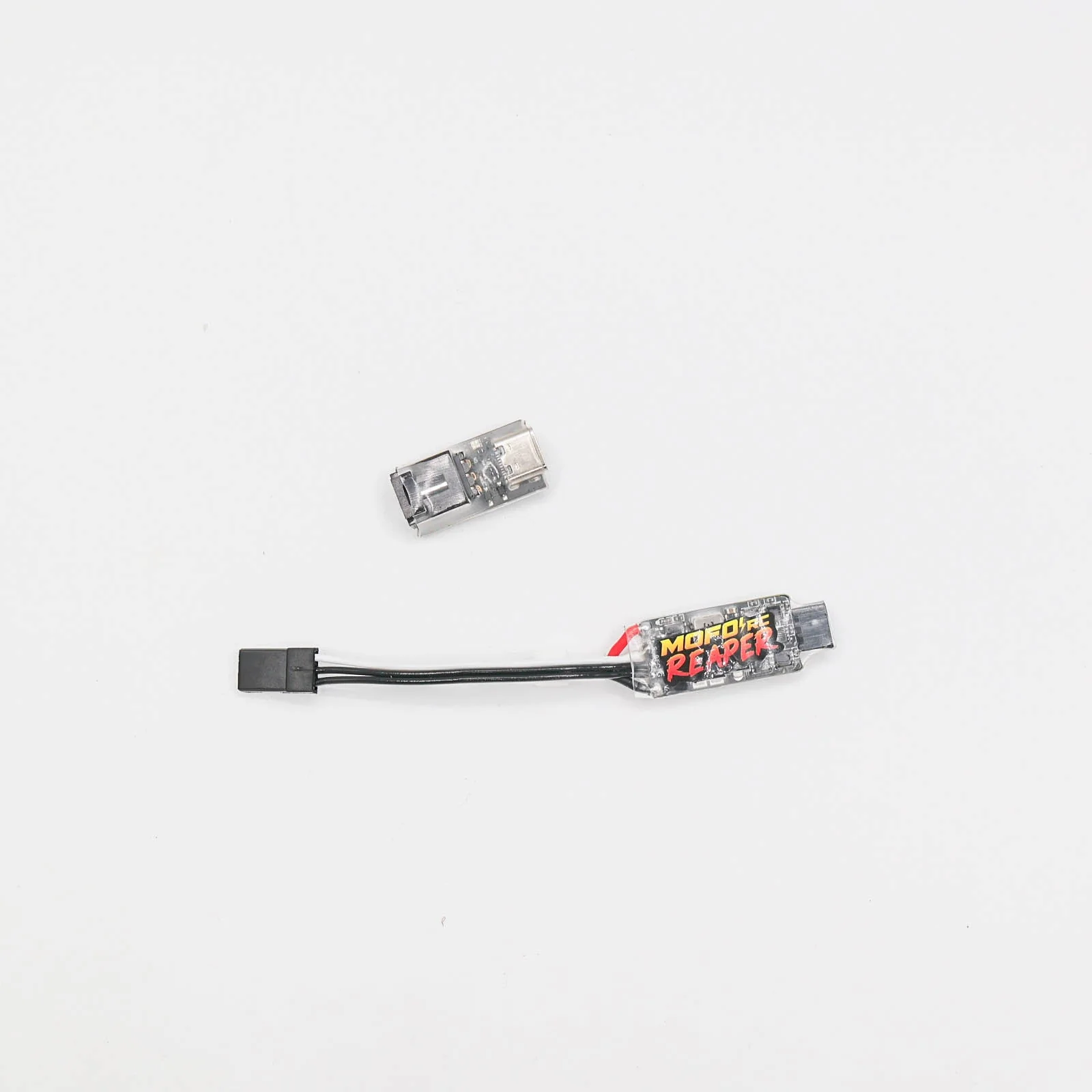

• 1 x WiFi Link
• 90 Day Warranty

Find more info on Tuning Your ESCape 32 ESC. To program the ESC, plug your servo connector into the WiFi link and a 2S Lipo into the ESC. On your phone or computer, connect to the Escape 32 Wifi Link Wifi Network. From there, go to escape32.local on your browser. Adjust your settings and click save.

Reaper ESC Features The STM G071 Processing Chip, this is a HUGE upgrade over F051-era ESCs because it has:

• faster processing
• better timers
• more flash
• more RAM
• better peripheral handling
• better interrupt timing

Why this matters? At ultra-low RPM crawling, the ESC is basically trying to:

• predict rotor position
• switch phases at the exact right microsecond
• avoid cogging
• maintain torque
• not desync

The faster/more precise the MCU, the smoother the motor feels.

This chip gives:

• advanced startup algorithms
• smoother sine interpolation
• more aggressive filtering
• better drag brake behavior
• future firmware features
