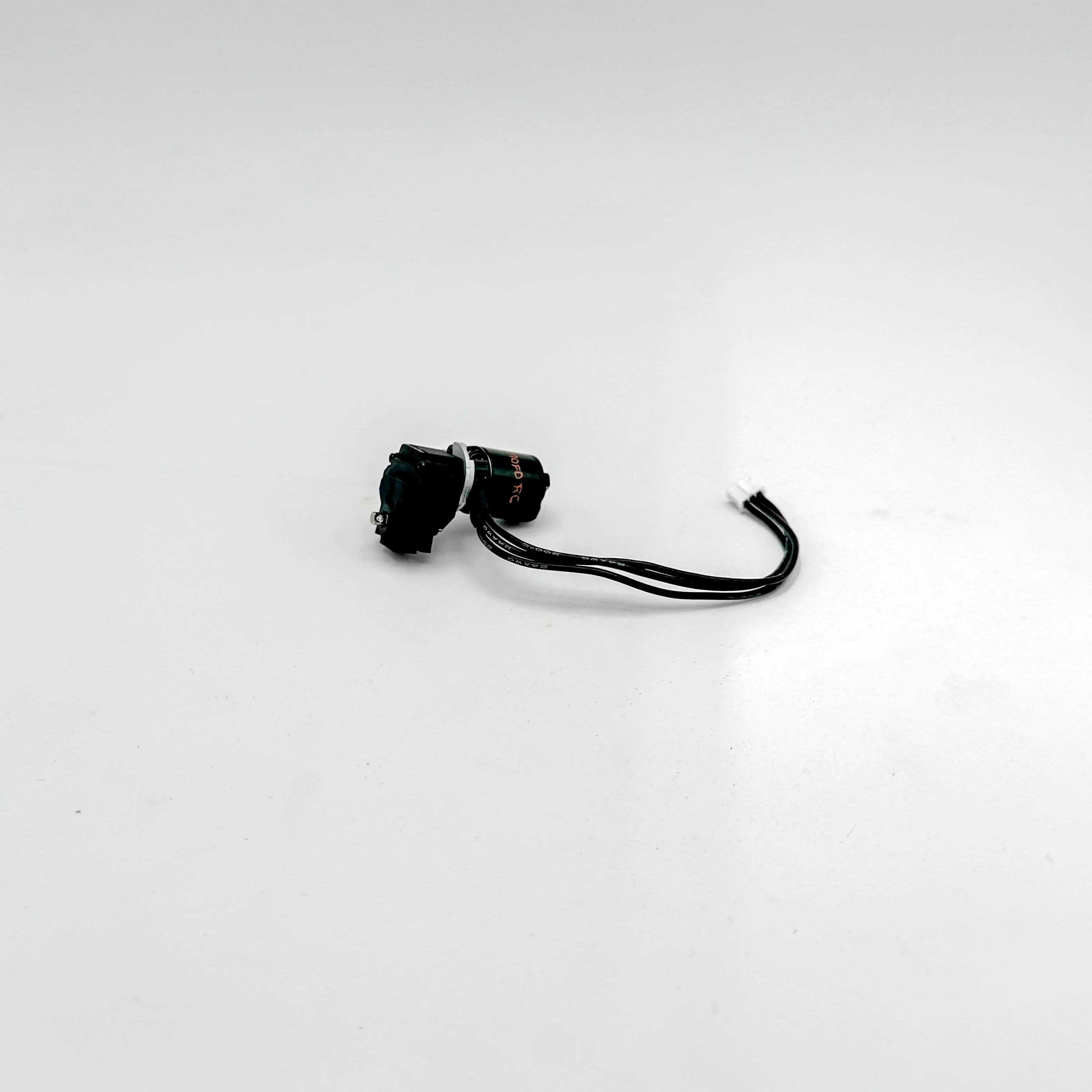

NanoBAM XL 1900KV Brushless Motor for Redcat Ascent 32
The NanoBam XL is a perfect addition to the Redcat Ascent 32. With a 1900KV, the car is slowed down to a much more usable slower crawl and control. This edition includes a special aluminum adapter plate to fit the stock motor mount of the Redcat Ascent 32.
You will need to replace your stock ESC/receiver and servo in order to utilize this motor as the stock servo is operated by the all-in-one receiver unit. Ā To see installation, check out this video.
Includes:
- Motor with pre-installed pinion
- Adapter plate
- Mounting Hardware
Specs and Dimensions
| KV | 1900 |
| Voltage | 2-4s Lipo |
| Bolt Pattern | 12mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 12mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 16.3mm x 23mm |
| Weight | 16.8 grams |
| Wire Length | 125mm |
| Connector | Standard PH2.0 3 pin |
Ā
